Woodward 9907-164 Field-Programmable Steam Turbine Control Unit with 16 Contact Inputs and Auto-Start Sequence
| Menşe yeri | OEM |
|---|---|
| Marka adı | Woodward |
| Model numarası | 9907-164 |
| Min sipariş miktarı | 1 |
| Fiyat | $3500 |
| Teslim süresi | Guangdong, Çin |
| Ödeme koşulları | T/T |
| Yetenek temini | 999 |
Ürün ayrıntıları
| Ürün Kimliği | Woodward 9907-164 Buhar Türbini Kontrol Ünitesi | Marka | AHŞAP |
|---|---|---|---|
| Seri | 9907-164 | Model Numarası | 9907-164 |
| Garanti | 1 Yıl | İşlev | İyi |
| Durum | Yeni | ||
| Vurgulamak | Field-Programmable Steam Turbine Control Unit,16 Contact Inputs Digital Speed Control Module,Auto-Start Sequence Microprocessor-Based Control Unit |
||
Ürün Açıklaması
Woodward 9907-164 Steam Turbine Control Unit
The Woodward 9907-164 is a microprocessor-based control unit designed for single extraction or admission steam turbines. This advanced control system operates inlet valves using split-stage actuators and features field-programmable functionality through an integrated operator panel with a two-line text display. The unit includes 16 contact inputs and 6 programmable 4-20 mA inputs, with standard features such as auto-start sequence, critical speed avoidance, valve limiters, and a first-out shutdown indicator for simplified troubleshooting.
Technical Specifications
| Product Type | Digital Speed Control Module |
| Input Voltage | 24 VDC |
| Chassis | Sheet Metal |
| Dimensions | 15.2cm × 5.1cm × 20.3cm |
| Operating Temperature | -10°C to 60°C |

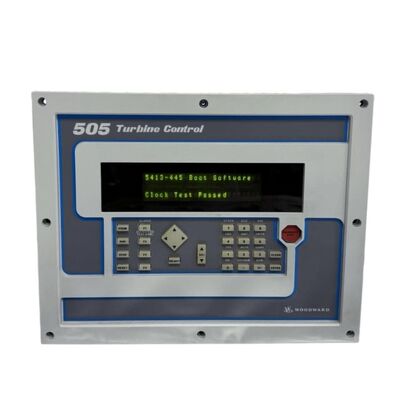

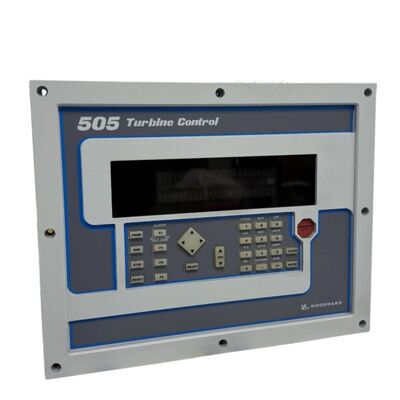

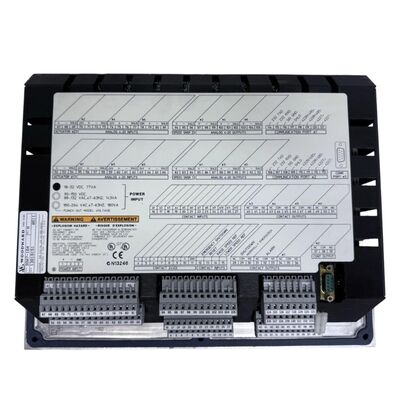

Product Images
Installation Requirements
Professional installation is essential to ensure optimal performance, operational safety, and compliance with industry standards. Proper implementation is critical for reliable system integration and long-term operational efficiency.
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
