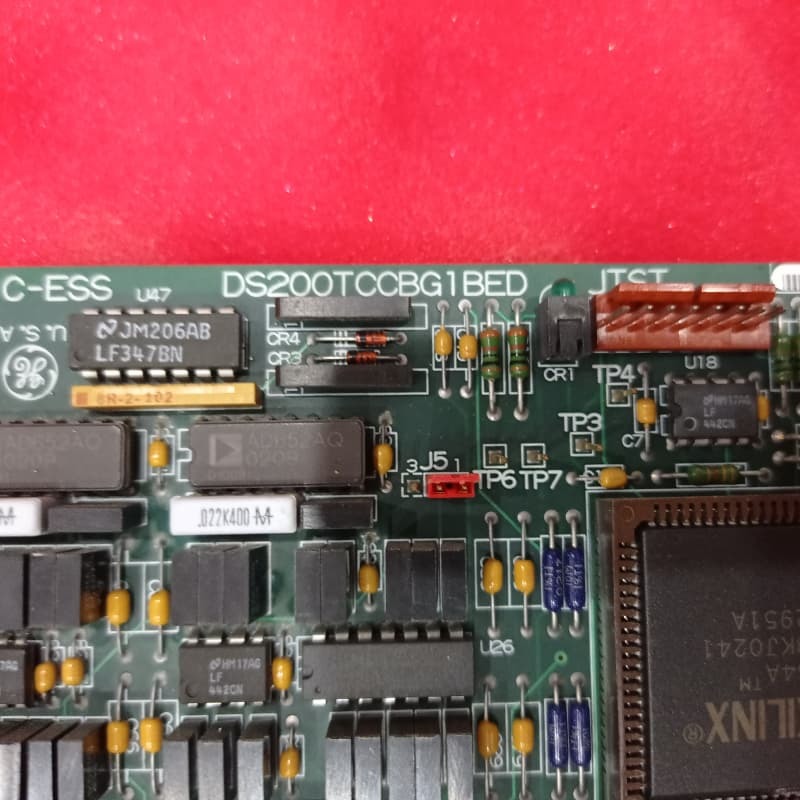

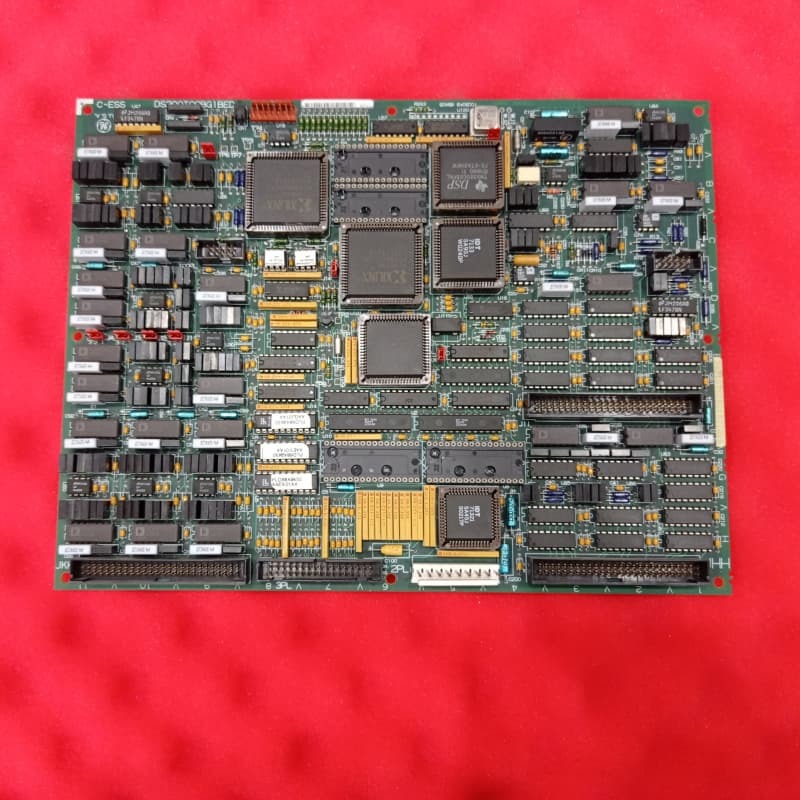

GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control

  • GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
  • GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
  • GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
Menşe yeri Biz
Marka adı GE
Model numarası DS200TCCBG1B
Min sipariş miktarı 1 adet
Fiyat $3000
Ambalaj bilgileri Yeni ve orijinal fabrika, bireysel kutu paketleme
Teslim süresi 5-7 gün
Ödeme koşulları T/T
Yetenek temini 999 adet

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
İsim GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Kartı Markı V GE Türbin Kontrolü Ürün kimliği DS200TCCBG1B
Seri Mark V İşlev Ayrık Çıkış Paketi
Ürün ağı derinliği/uzunluğu 330mm Ürün Net Yüksekliği 200 mm
Ürün ağı genişliği 100 mm Ürün Net Ağırlığı 2kg
Garanti 1 yıl
Vurgulamak

GE Turbine Control analog board

,

DS200TCCBG1B I/O board

,

Mark V turbine control board
Mesaj bırakın
Ürün Açıklaması
GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
The GE DS200TCCBG1B is an I/O TC2000 Analog Board designed for GE's Speedtronic Mark V gas turbine control systems. A revised variant of the original DS200TCCBG1 parent board, it leverages GE's patented Speedtronic technology and fits within the legacy Mark V Series, despite the series being obsolete.
Product Details
Its core hardware includes an 80196 CPU, multiple PROM modules, one side-visible LED for status monitoring, and two 50-pin connectors. It features three configurable jumpers--3-pin design covering two pins at a time--allowing installers to adjust settings to match drive specifications. Default positions suffice for most cases, with adjustments guided by factory documentation.
Eight connectors enable system integration: 2PL (TCPS power), 3PL (COREBUS signals), JHH (TBCB inputs), JII (TBCB RTD inputs), JMP (TCEB PT/CT signals), plus JKK, JTEST, and TCQPL (vestigial, unused in normal operation).
Key Features
  • Configurable Jumpers: Three jumpers (JP1-JP3) enable customization of settings to match drive requirements, with clear guidance for adjustment and default positions for simplicity.
  • Central Processing & Memory: Equipped with an 80196 CPU and PROM modules, processing analog signals and executing control logic for turbine operations.
  • Dedicated Connectivity: Eight connectors---five functional, three vestigial interface with key Mark V components (TCPS, TBCB, TCEB boards), ensuring seamless signal transmission.
  • Status Monitoring: A side-visible LED provides at-a-glance operational status, aiding quick diagnostics.

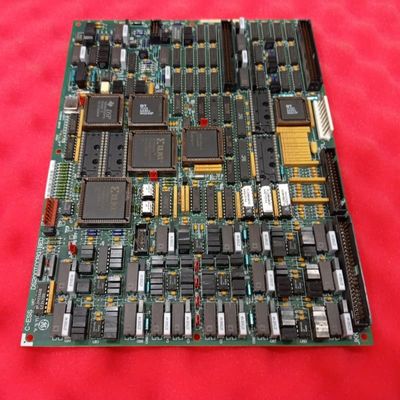

GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control 0 GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control 1
