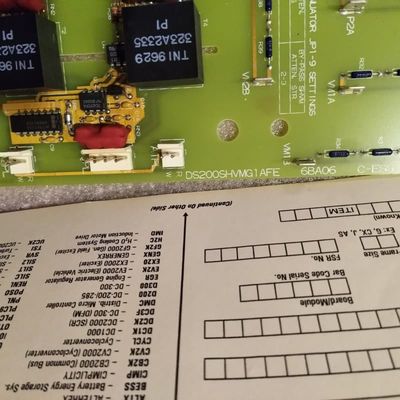

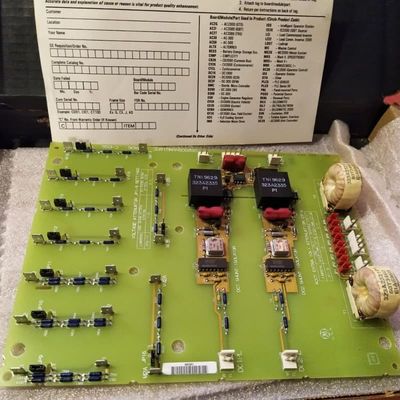

GE DS200SHVIG1BFC SCR High Voltage Interface Board with SCR Bridge Interface Signal Conversion and 2kg Weight for Turbine Control
| Menşe yeri | Biz |
|---|---|
| Marka adı | GE |
| Model numarası | DS200SHVIG1BFC |
| Min sipariş miktarı | 1 adet |
| Fiyat | $1500 |
| Ambalaj bilgileri | Yeni ve orijinal fabrika, bireysel kutu paketleme |
| Teslim süresi | 5-7 gün |
| Ödeme koşulları | T/T |
| Yetenek temini | 999 adet |
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| İsim | GE DS200SHVIG1BFC SCR Yüksek Voltaj Arayüz Kart | Parça numarası | DS200SHVIG1BFC |
|---|---|---|---|
| Seri | Mark V | İşlev | Ayrık Çıkış Paketi |
| Ürün ağı derinliği/uzunluğu | 330mm | Ürün Net Yüksekliği | 200 mm |
| Ürün ağı genişliği | 100 mm | Ürün Net Ağırlığı | 2kg |
| Garanti | 1 yıl | ||
| Vurgulamak | SCR Bridge Interface Board,Signal Conversion Interface Card,2kg Weight Turbine Control Board |
||
Ürün Açıklaması
GE DS200SHVIG1BFC SCR High Voltage Interface Board
Product Details:
The GE DS200SHVIG1BFC is a specialized Silicon Controller Rectifier (SCR) High-Voltage Interface Card designed exclusively for GE’s Mark V Turbine Control System—a legacy platform and one of the final GE product lines to integrate the patented Speedtronic control technology. It serves as a critical interface between the drive’s SCR bridge and key components like the PCCA (Power Connect Card), power supply, and instrumentation card.
Its core functionality revolves around signal conversion and voltage management: it accepts low-range input signals and converts them into differential frequency outputs, which are then transmitted to the drive’s power supply card for processing. It also features 17 configurable Berg-type jumpers that provide additional attenuation for line and bridge voltages. Three on-board LED indicators alert operators to blown fuses, enabling quick fault detection.
Key Features:
SCR Bridge Interface Core Role: Acts as a dedicated interface between the drive’s SCR bridge and critical components (PCCA, power supply, instrumentation card), enabling seamless power and signal transfer for turbine control.
Precise Signal Conversion: Translates low-voltage input signals into differential frequency outputs, ensuring compatible signal transmission to the power supply card for accurate processing.
Configurable Voltage Attenuation: 17 Berg-type jumpers allow customized attenuation of line and bridge voltages, adapting to diverse drive operating conditions.
Real-Time Fault Alerts: Three LED indicators provide immediate visual feedback on blown fuses, simplifying troubleshooting and reducing downtime for maintenance.
Fragile, Voltage-Sensitive Design: Minimal voltage-limiting hardware makes it highly sensitive to voltage fluctuations and physically delicate, requiring strict adherence to GE’s installation guidelines to prevent damage.
