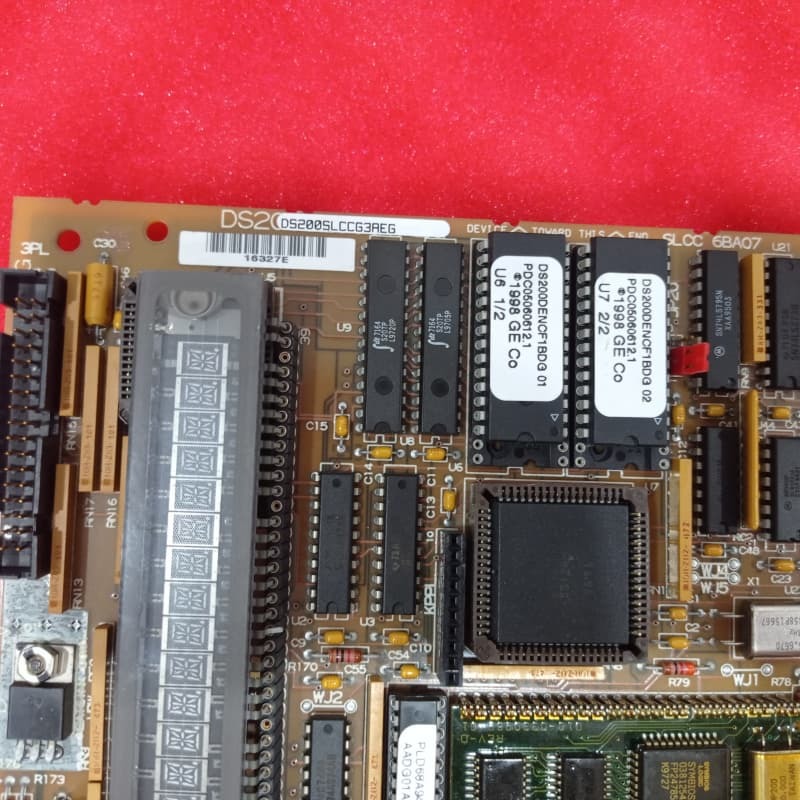

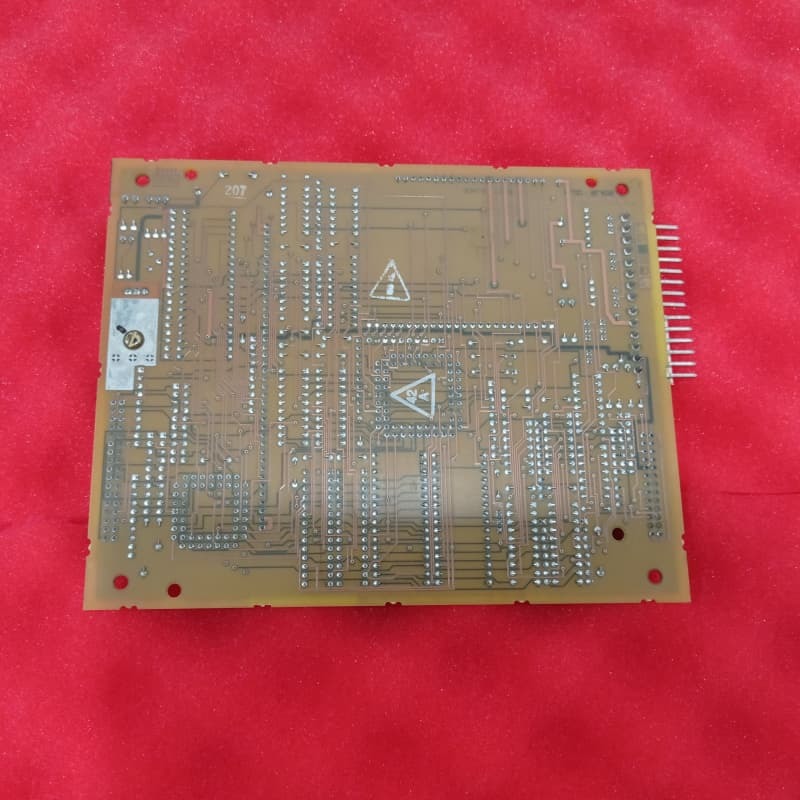

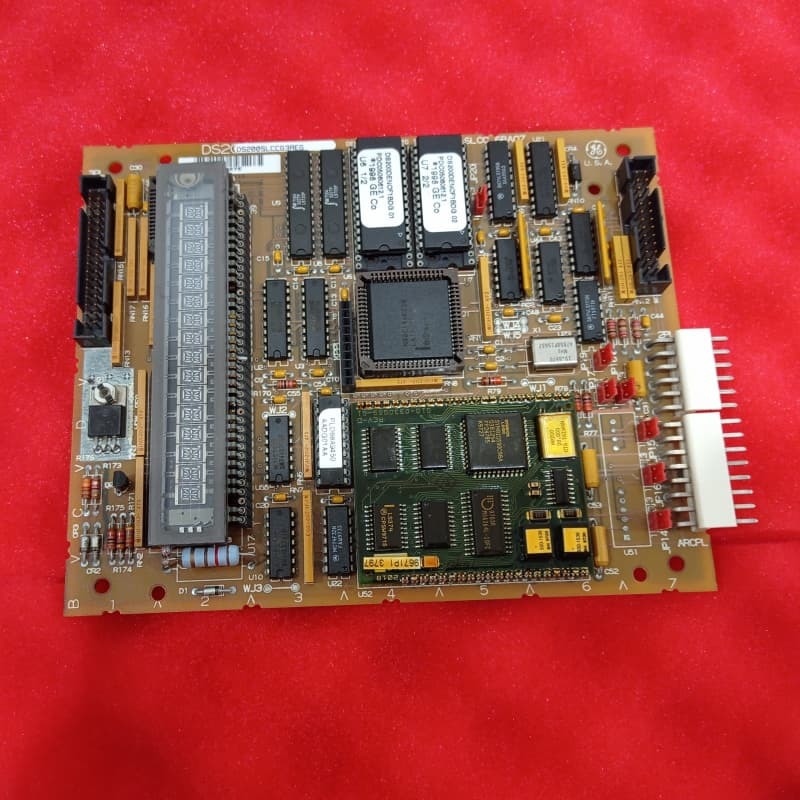

GE DS200SLCCG3AEG LAN Communication Card 330mm x 200mm x 100mm
| Menşe yeri | BİZ |
|---|---|
| Marka adı | GE |
| Sertifika | COO |
| Model numarası | DS200SLCCG3AEG |
| Min sipariş miktarı | 1 adet |
| Fiyat | $1900 |
| Ambalaj bilgileri | Yeni ve orijinal fabrika, bireysel kutu paketleme |
| Teslim süresi | 5-7 gün |
| Ödeme koşulları | T/T |
| Yetenek temini | 999 adet |
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| İsim | GE DS200SLCCG3AEG LAN İLETİŞİM KARTI | Ürün kimliği | DS200SLCCG3AEG |
|---|---|---|---|
| Seri | Türbine özgü birincil gezi tahtası | İşlev | Servo Kontrol Kartı |
| Ürün ağı derinliği/uzunluğu | 330mm | Ürün Net Yüksekliği | 200 mm |
| Ürün ağı genişliği | 100 mm | Ürün Net Ağırlığı | 2kg |
| Garanti | 1 yıl | ||
| Vurgulamak | GE DS200SLCCG3AEG LAN card,GE turbine control communication card,LAN communication card with warranty |
||
Ürün Açıklaması
GE DS200SLCCG3AEG LAN Communication Card
Product Details:
The GE DS200SLCCG3AEG is a LAN (Local Area Network) Communication Board belonging to GE’s Mark V Turbine Control System—a legacy series now obsolete due to manufacturing discontinuation post-launch, but notable as one of the final GE Mark lines to integrate patented Speedtronic control technology. Designed for wind, steam, and gas turbine drive control systems, it is a revised variant of the original DS200SLCCG3 parent board, incorporating an A-rated functional revision that distinguishes it from the base model.
Functionally, it serves as a universal LAN interface for a wide range of GE drives and exciters, providing both isolated and non-isolated communication circuits to process incoming/outgoing LAN signals. At its core is a LAN Control Processor, whose software is stored in two replaceable EPROMs; it also includes dedicated LCP RAM and dual-ported RAM for seamless communication with the Drive Control Processor on the DS215SDCC Drive Control Card via the 3PL connector. It connects to other key boards through a 2PL connector and features an attachable programmer module with a 16-position alphanumeric display and keypad—enabling users to adjust software settings, perform diagnostic tests, and read fault codes.
Key Features:
Dual-System Compatibility: Works with GE’s Mark V Turbine Control System and EX2000 gas turbine control systems, leveraging Speedtronic technology for reliable turbine drive communication.
Dual-Circuit Communication: Offers both isolated and non-isolated circuits, ensuring signal integrity across diverse drive/exciter setups.
Integrated Processing & Memory: LCP (U1) with replaceable EPROMs (software storage) and dedicated RAM ensures smooth LAN signal processing; dual-ported RAM enables seamless data exchange with the DCP.
User-Friendly Diagnostics: Attachable programmer module with alphanumeric display and keypad simplifies software adjustments, diagnostics, and fault code reading.
