GE Mark V DS200SDCIG1ABA DC Power Supply Board 200mm x 330mm
| Menşe yeri | Amerika |
|---|---|
| Marka adı | GE |
| Sertifika | COO |
| Model numarası | DS200SDCIG1ABA |
| Min sipariş miktarı | 1 |
| Fiyat | $999 |
| Teslim süresi | 5-7 gün |
| Ödeme koşulları | T/T |
| Yetenek temini | 999 |
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| İsim | GE Mark V200SDCIG1ABA DC Güç Kaynağı ve Enstrümantasyon Kurulu | Ürün kimliği | DS200SDCIG1ABA |
|---|---|---|---|
| Seri | Mark V | Ürün Net Yüksekliği | 200 mm |
| Ürün ağı derinliği/uzunluğu | 330mm | Ürün ağı genişliği | 100 mm |
| Ürün Net Ağırlığı | 2kg | Garanti | 1 yıl |
| Vurgulamak | GE Mark V DC power supply board,DS200SDCIG1ABA power supply module,200mm x 330mm turbine control board |
||
Ürün Açıklaması
GE Mark V DS200SDCIG1ABA DC POWER SUPPLY AND INSTRUMENTATION BOARD
Product Description:

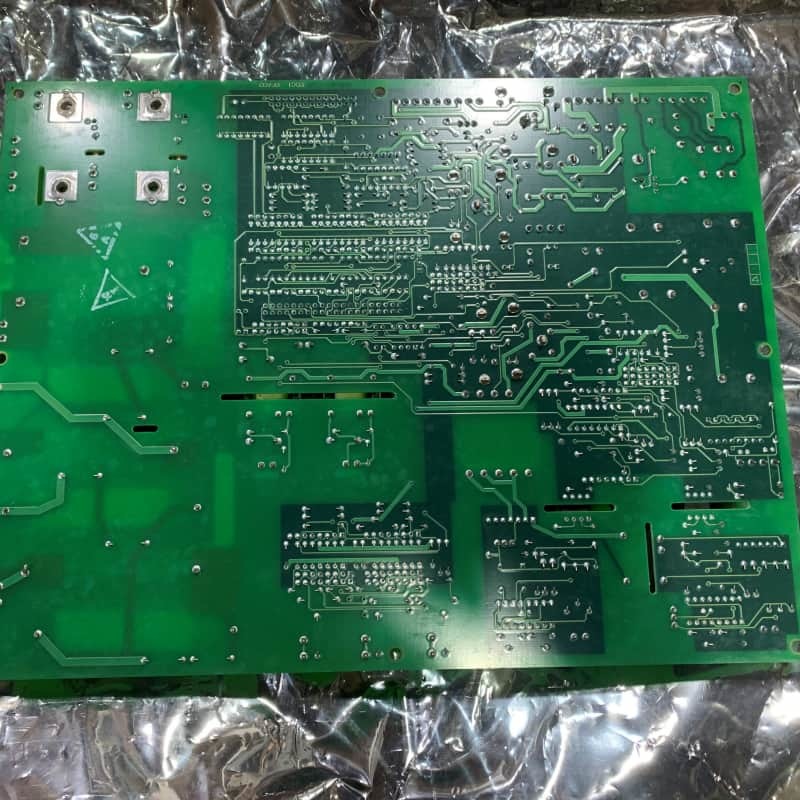

The GE DS200SDCIG1ABA is a Power Supply Board for GE’s Mark V Turbine Control System and DC2000 drive control systems. It acts as an interface to DC2000 drives, enabling non-reversing/non-plugging (NRX) motor control for unidirectional motor operation. As a Group 1 Mark V component, it has three revisions: two functional, one artwork and domestic manufacture.

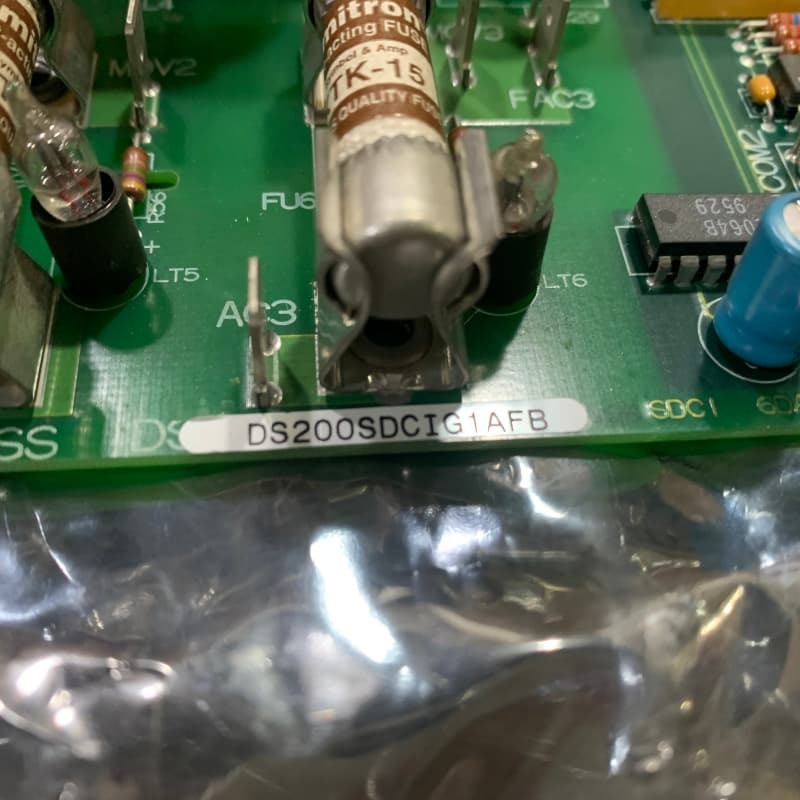

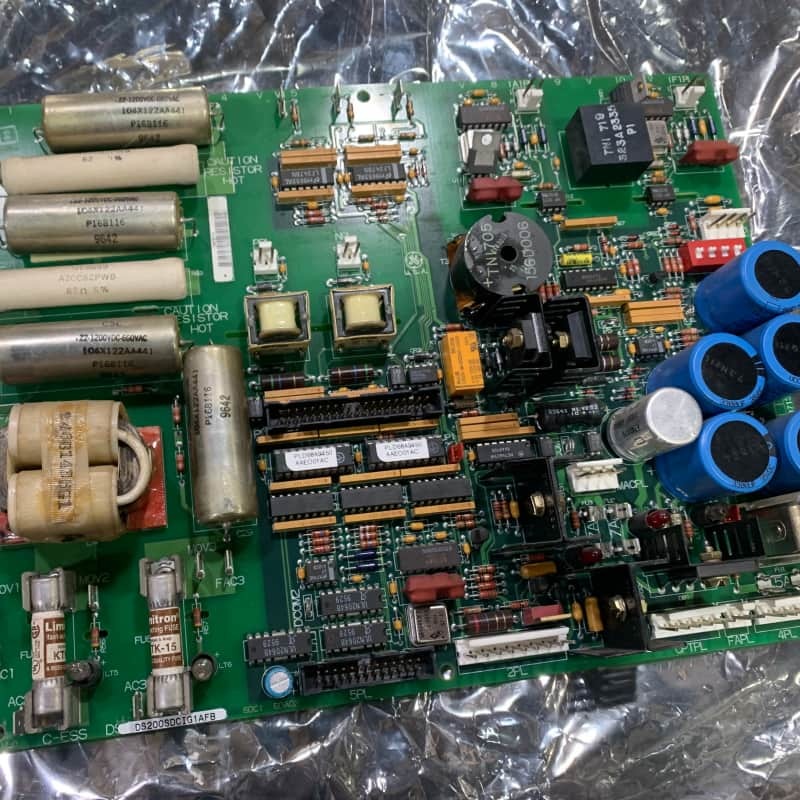

Key hardware includes power circuits ----armature SCR gating, motor field control, fuses---FU1-FU3, FU5-FU6 for 115V AC/signal power, two jumpers, and SW1. It offers two versions: SDCIG1 that internal 10A NRX field control with 15A fused outputs, line reactor, snubbers. And SDCIG2 external field supply management. Power supplies include ±5V/±15V/±24V DC and 115V AC; it uses thyristor-diode bridges for field current regulation.
Features:
NRX Motor Control: Enables single-direction motor operation for DC2000 drives, boosting reliability in consistent, unidirectional applications.
Dual-Version Flexibility: SDCIG1 (integrated 10A field control) suits self-contained setups; SDCIG2 (external field management) offers customization for external systems.
Comprehensive Protection: Fuses with neon blow indicators, AC/DC snubbers, and line reactors guard against voltage spikes, noise, and component damage.
Precise Power Regulation: Thyristor-diode bridges and dedicated power circuits (±5V/±15V/±24V DC, 115V AC) ensure stable field current and system power.
Technical Parameters:
| Product Name: | GE Mark V DS200SDCIG1ABA DC POWER SUPPLY AND INSTRUMENTATION BOARD |
| Product ID: | DS200SDCIG1ABA |
| Series: | Mark V |
| Product Net Weight: | 2kg |
| Product Net Height: | 200mm |
| Product Net Width: | 100mm |
| Product Net Depth/Length: | 330mm |
| Warranty: | 1 Year |
