GE DS200PCCAG5ACB Power Connect Card 330mm x 200mm Mark V

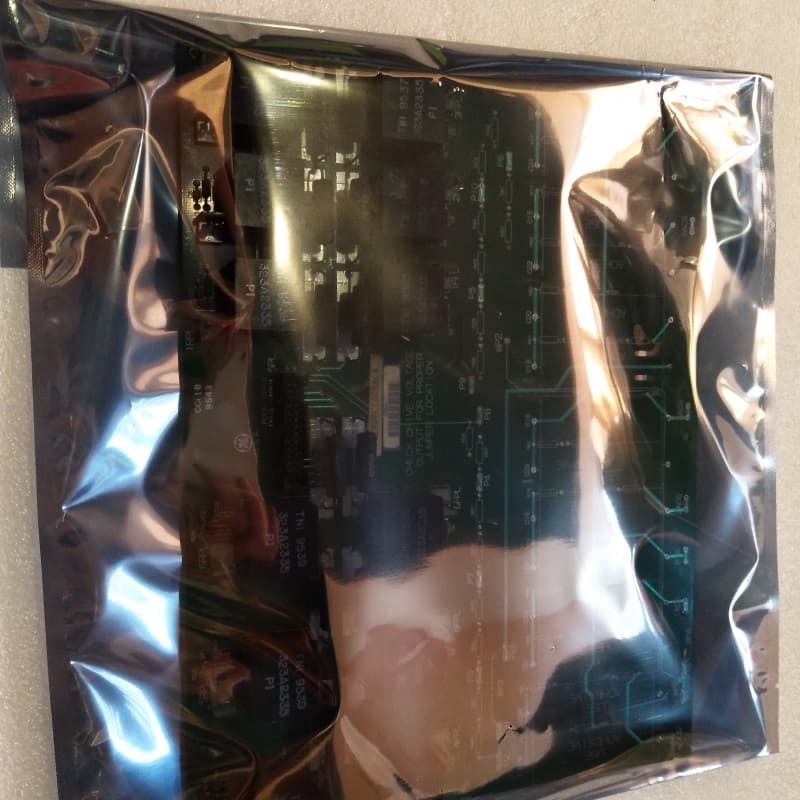

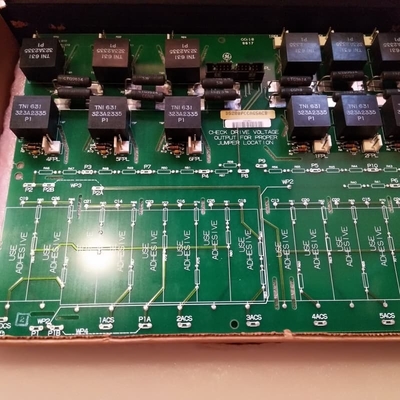

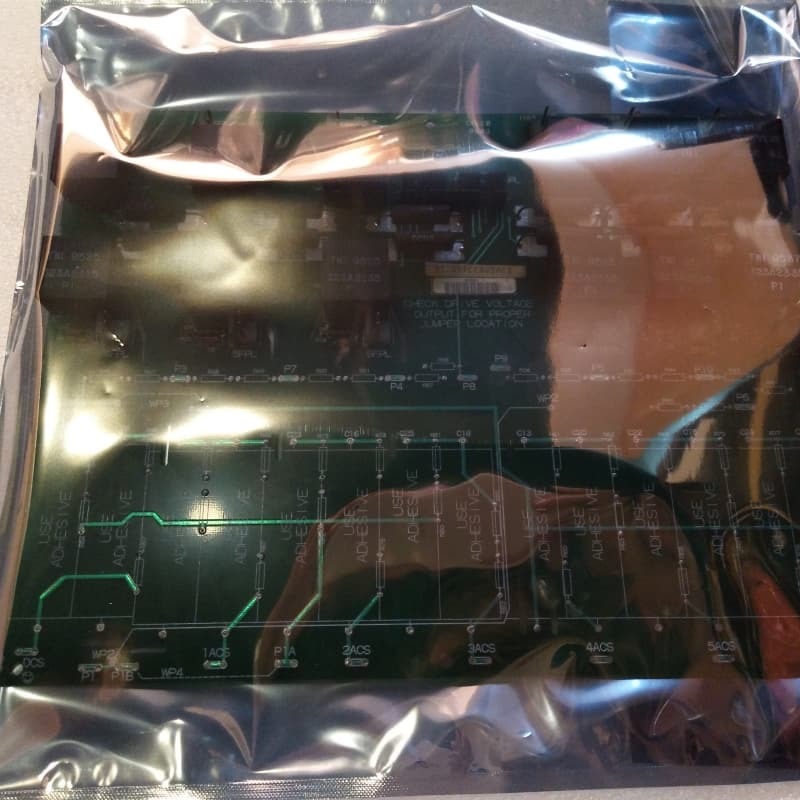

GE DS200PCCAG5ACB Power Connect Card

Product Details:

The GE Speedtronic Mark V DS200PCCAG5ACB is a high-horsepower Power Connect Card designed to bridge SCR power bridges and a drive’s control circuitry. It uses pulse transformers to deliver gate drive signals to the SCR bridge and is classified as “high HP” because its snubbers are relocated elsewhere in the system, requiring pairing with high HP controllers.

It features 12 plug connectors for forward/reverse SCR gate pulses, one connector for DCFB-type power supply board communication, plus leg reactors, fuses, and 4 wire jumpers. Mounted behind the drive control board, it is secured to a board carrier via six plastic holders. Static-sensitive, it has factory-drilled insulated holes for safe installation; its “G5” product tag denotes Mark V Group 5 membership, 1500 V rms max AX Voltage, and compatibility with J/K/M-style Mark V frames.

Key Features:
High HP SCR Integration: Relocates snubbers/attenuation strings for high HP use, pairing with high HP controllers to link SCR bridges and control circuitry via pulse transformers.

Targeted Connectivity: 12 plug connectors for bidirectional SCR gate pulses and a DCFB power supply connector ensure seamless signal/power links in Mark V drives.

Mark V Group 5 Compatibility: “G5” tag confirms 1500 V rms max voltage and J/K/M-frame fit, simplifying compatibility checks for Mark V systems.

Secure Mounting: Installed behind drive control/power supply boards, secured by six plastic holders to a carrier—with insulated drill holes for safe, stable placement.

Static & Voltage Safety: Treated as static-sensitive; base board avoids dangerous surface voltage buildup post-power-off, critical for safe installation/maintenance.
