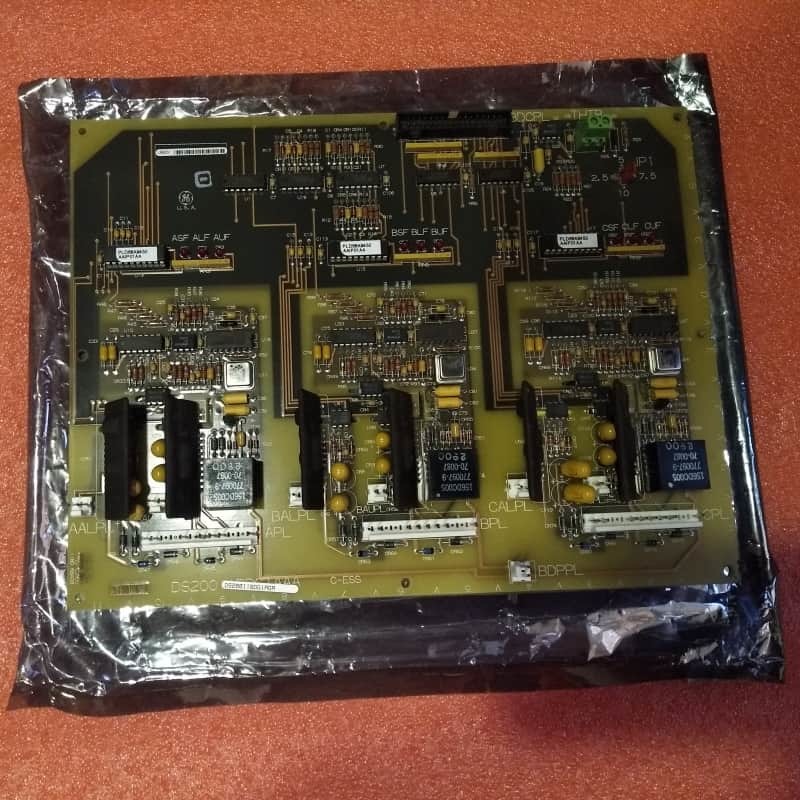

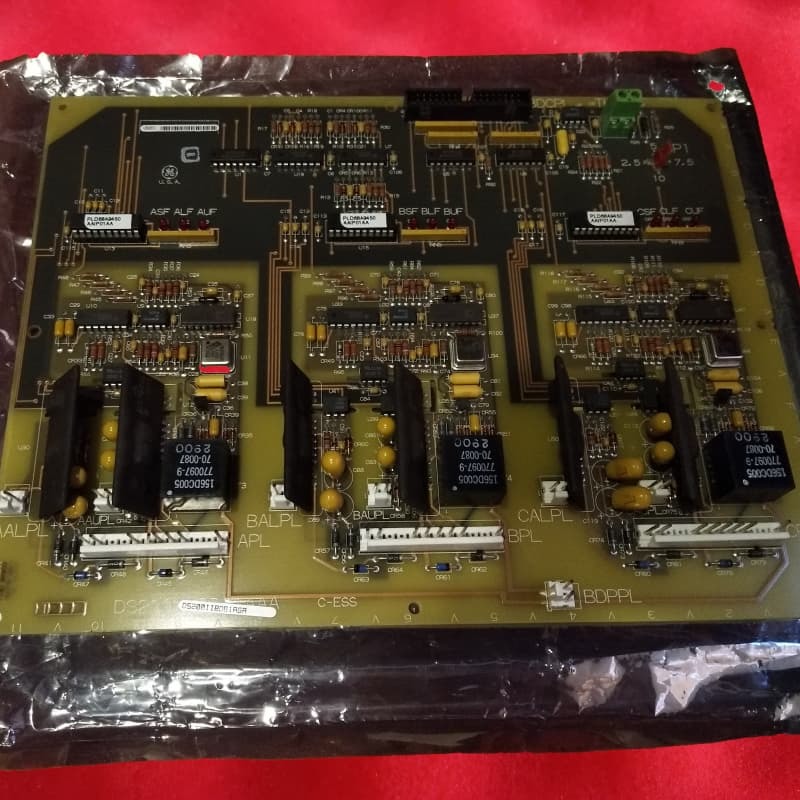

GE DS200IIBDG1ADA IGBT Gate Driver Board 330mm x 200mm Mark V
| Menşe yeri | BİZ |
|---|---|
| Marka adı | GE |
| Model numarası | DS200IIBDG1ADA |
| Min sipariş miktarı | 1 adet |
| Fiyat | $1500 |
| Ambalaj bilgileri | Yeni ve orijinal fabrika, bireysel kutu paketleme |
| Teslim süresi | 5-7 gün |
| Ödeme koşulları | T/T |
| Yetenek temini | 999 adet |
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| İsim | GE DS200IIBDG1ADA PCB IGBT GATE Sürücü Kurulu | Ürün kimliği | DS200IIBDG1ADA |
|---|---|---|---|
| Seri | Mark V | İşlev | Ayrık Çıkış Paketi |
| Ürün ağı derinliği/uzunluğu | 330mm | Ürün Net Yüksekliği | 200 mm |
| Ürün ağı genişliği | 100 mm | Ürün Net Ağırlığı | 2kg |
| Garanti | 1 yıl | ||
| Vurgulamak | GE IGBT Gate Driver Board,Mark V Turbine Control Board,330mm x 200mm Gate Driver |
||
Ürün Açıklaması
GE DS200IIBDG1AEDA IGBT Gate Driver Board 330mm x 200mm
Product Description
The GE DS200IIBDG1ADA is an IGBT (Insulated Gate Bipolar Transistor) Driver Board designed for drive control systems, specifically GE's Mark V Series. This revised version of the parent DS200IIBDG1 board features three significant product updates.
Core Functionality
The board delivers precise control signals to IGBT gate terminals, synchronizing with system needs to regulate switching frequency and duty cycle. It also monitors key parameters including temperature, voltage, and current for safe, efficient IGBT operation.
Physical Specifications
- Dimensions: 330mm x 200mm
- 34-pin connector for ribbon cable connection

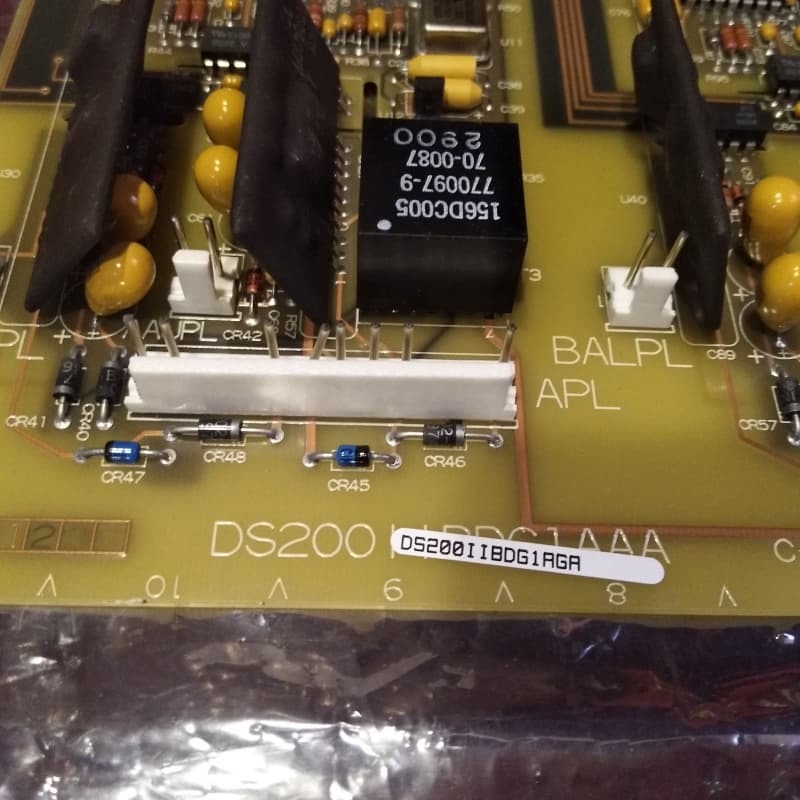

- Three 8-pin connectors labeled APL, BPL, CPL for system communication
- Nine red indicator LEDs for status monitoring
- Thick standard PCB coating for hardware protection
Key Features
- Precise IGBT Control: Generates PWM signals to regulate IGBT switching, optimizing efficiency
- Parameter Monitoring: Tracks temperature, voltage, and current to prevent IGBT damage
- Structured Connectivity: Multiple connectors enable secure system integration
- Visual Status Indicators: Red LEDs provide clear operational feedback
- Protective Design: Thick PCB coating enhances durability in industrial environments
Safety Notes
Ribbon cables must be gripped by connectors to avoid damage. The board is high-voltage - no contact with cabinet components is allowed during operation.
Compatible Models
| DS200DTBBG1ABB | DS200TCCAF1BDF |
| DS200SDCIG2AFB | IS200ISBBG1AAB |
| DS200SDCIG2AHB | IS200CABPG1BAA |
| DS200BDAAG1AAA | IS200DSFCG1AEB |
| DS200SIOBH1ABA | IS200DRLYH1BBB |
