GE IS420PPNGH1A PROFINET Gateway Module 330mm x 200mm

Menşe yeri BİZ
Marka adı GE
Model numarası IS420PPNGH1A
Min sipariş miktarı 1 adet
Fiyat $7000
Ambalaj bilgileri Yeni ve orijinal fabrika, bireysel kutu paketleme
Teslim süresi 5-7 gün
Ödeme koşulları T/T
Yetenek temini 999 adet

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
İsim GE IS420PPNGH1A Profinet Denetleyici Ağ Geçidi Modülü Ürün kimliği IS420PPNGH1A
Seri Mark VI İşlev Giriş terminal tablosu
Ürün ağı derinliği/uzunluğu 330mm Ürün Net Yüksekliği 200 mm
Ürün ağı genişliği 100 mm Ürün Net Ağırlığı 2kg
Garanti 1 yıl
Vurgulamak

GE PROFINET Gateway Module

,

Turbine Control Gateway Module

,

PROFINET Module 330mm x 200mm

Mesaj bırakın
Ürün Açıklaması

GE IS420PPNGH1A PROFINET Controller Gateway Module


Product Details:


The GE IS420PPNGH1A is a PROFINET Controller Gateway Module part of the Mark VIe Series, designed for GE’s Distributed Control Systems, particularly Speedtronic turbine controls. As a dual-function device, it acts as a PROFINET controller and a gateway, enabling high-speed data exchange between systems.


Manufactured in the U.S. and readily available, it features a 1066 MHz Intel EP80579 processor, runs on QNX Neutrino OS, and has 256 DDR2 SDRAM. Measuring 13.0 x 4.0 inches and weighing 2.4 lbs, it uses air cooling and requires vertical panel mounting with unobstructed airflow. It operates on 24 VDC within 22–149°F, supporting up to 6 KB/ms PROFINET data rates, and requires ControlST V05.04+ for configuration.


Key Features:
PROFINET Integration: Functions as both controller and gateway, enabling seamless data exchange in industrial networks.


Powerful Hardware: Equipped with a 1066 MHz Intel EP80579 processor, 256 DDR2 SDRAM, and QNX Neutrino OS for reliable, high-speed processing of up to 6 KB/ms PROFINET data.


Industrial Design: Air-cooled, compact, and lightweight with vertical panel mounting. Operates in 22–149°F on 24 VDC, suited for turbine control environments.


Network Requirements: Uses ESWA or ESWB unmanaged switches; IONet and PROFINET need separate switches. Supports 3–18 feet cabling for flexible installation.

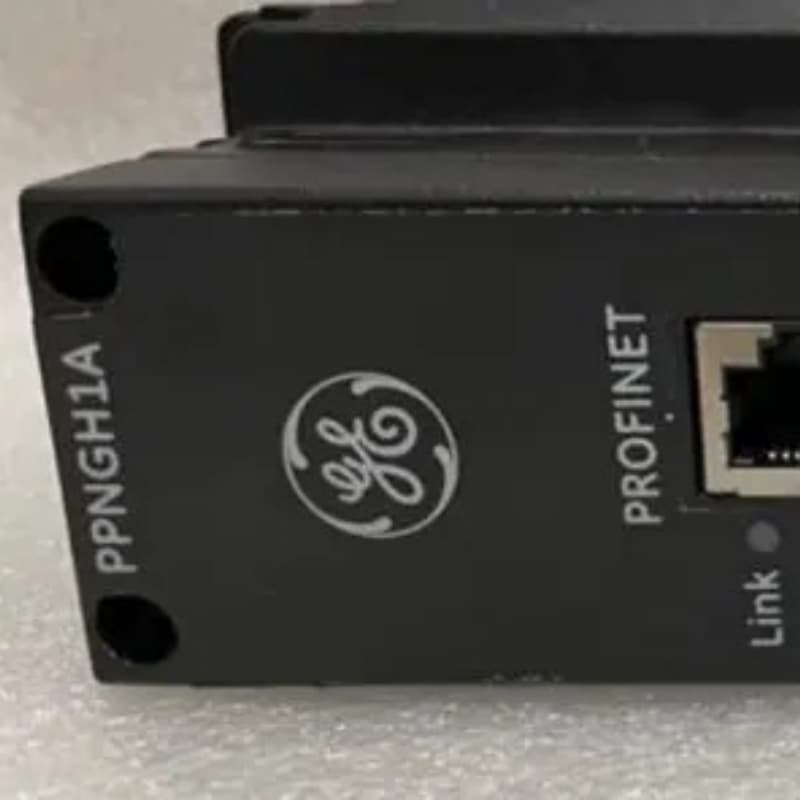

GE IS420PPNGH1A PROFINET Gateway Module 330mm x 200mm 0

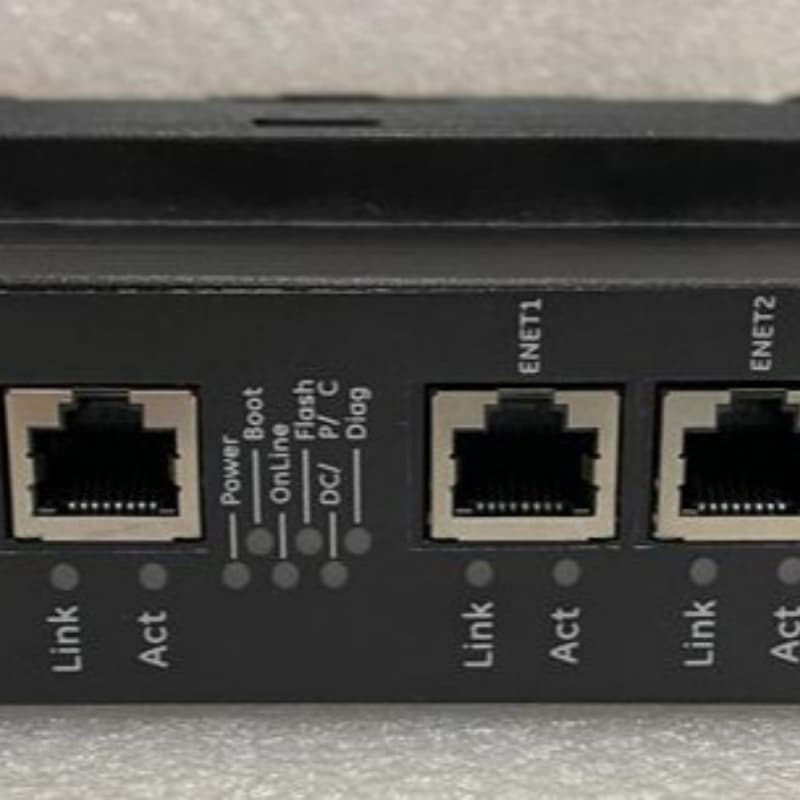

GE IS420PPNGH1A PROFINET Gateway Module 330mm x 200mm 1
