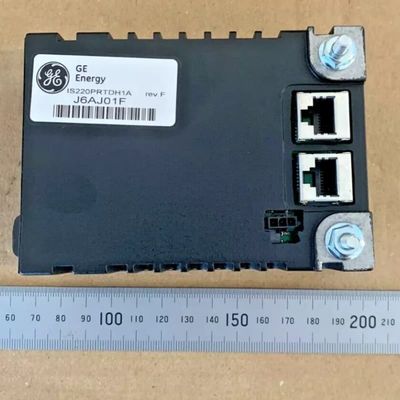

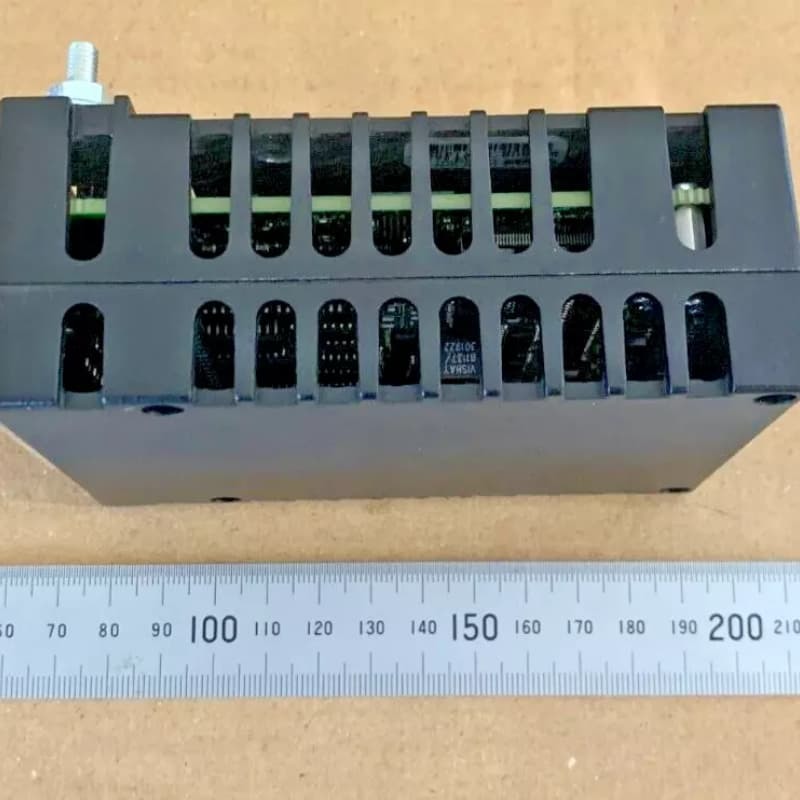

GE IS220PRTDH1A RTD Input Module for Turbine Control
| Place of Origin | US |
|---|---|
| Marka adı | GE |
| Sertifika | COO |
| Model Number | IS220PRTDH1A |
| Minimum Order Quantity | 1pc |
| Fiyat | $5500 |

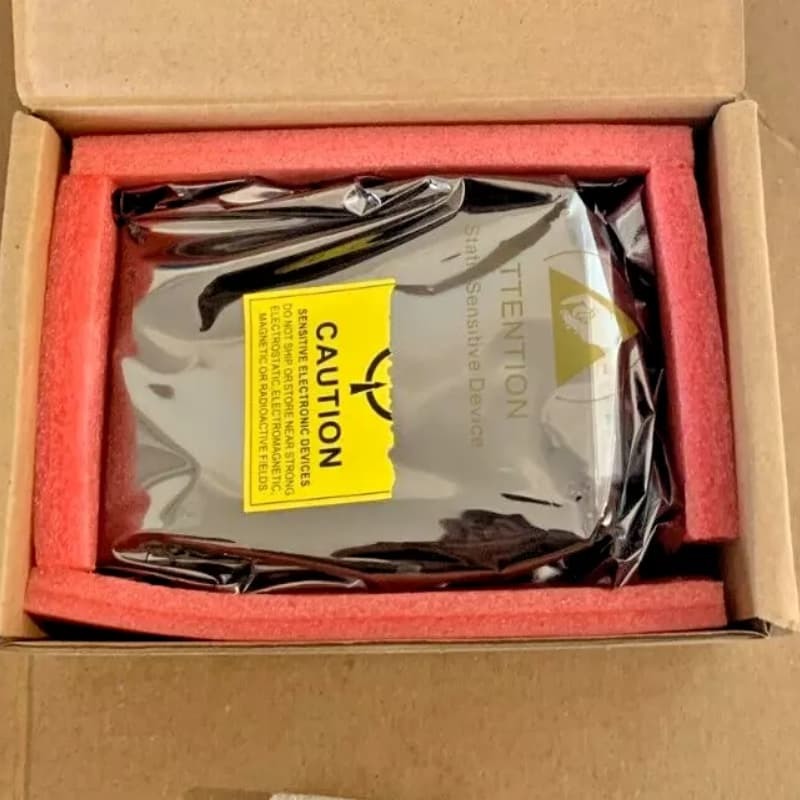

| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Name | GE IS220PRTDH1A Resistance Temperature Device Input Module | Product ID | IS220PRTDH1A |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Discrete Output Module |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Vurgulamak | GE RTD input module,turbine control RTD module,IS220PRTDH1A RTD module |
||
Ürün Açıklaması
GE IS220PRTDH1A Resistance Temperature Device Input Module
| Attribute | Value |
|---|---|
| Name | GE IS220PRTDH1A Resistance Temperature Device Input Module |
| Product ID | IS220PRTDH1A |
| Series | Turbine Specific Primary Trip Board |
| Function | Discrete Output Module |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS220PRTDH1A is a Resistance Temperature Device (RTD) Input Module part of the Mark VIe Series, designed for distributed control systems. It serves as an electrical interface between 1-2 Ethernet I/O networks and RTD input terminal boards, integrating a shared processor board and a dedicated RTD acquisition board.
Key Features
- RTD Signal Handling: Supports up to 8 RTD inputs with galvanic isolation, ensuring accurate temperature data acquisition.
- Compatibility: Works with TRTDH1D, H2D, and SRTD terminal boards; H1D offers standard filtering, H2D reduces filtering for rapid scan rates. Incompatibility with older TRTD boards triggers detection without physical damage.
- Redundancy & Connectivity: Supports simplex, dual, and TMR setups. Dual Ethernet ports operate simultaneously, with fault tolerance exceeding hot-backup systems.
- Diagnostics: Power-up self-tests; continuous power supply monitoring; electronic ID checks for hardware-code matching. Hardware/software limit tests trigger alarms, reset via RESET DIA/SYS signals.
- Installation & Design: DIN rail-incompatible, mounts via terminal board brackets to avoid connector stress; soft-start power circuit allows hot-plugging. Processor board includes temperature sensors, status LEDs, and auto-negotiating Ethernet ports for seamless integration.
