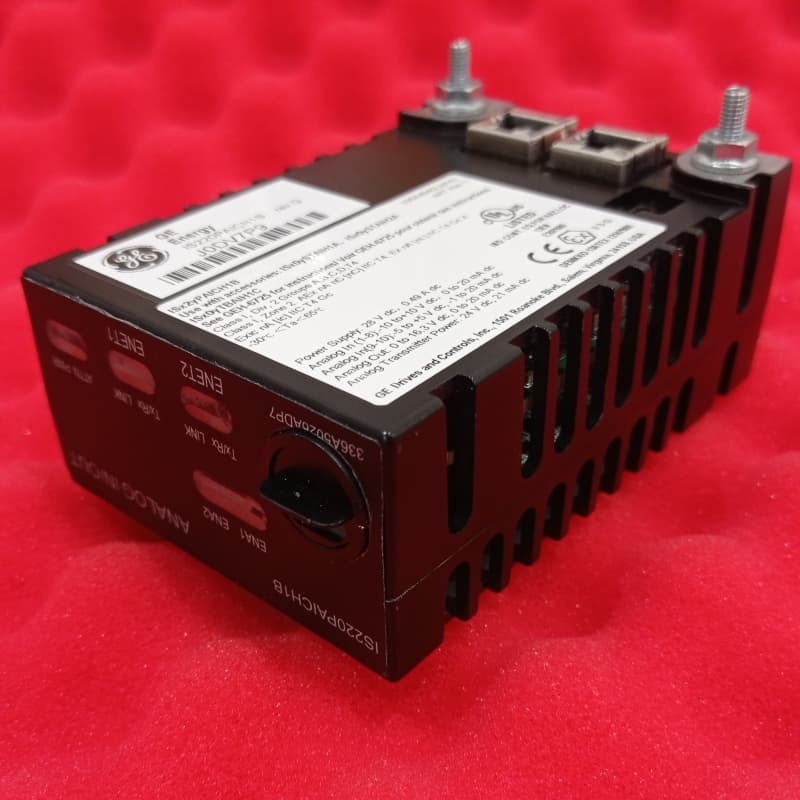

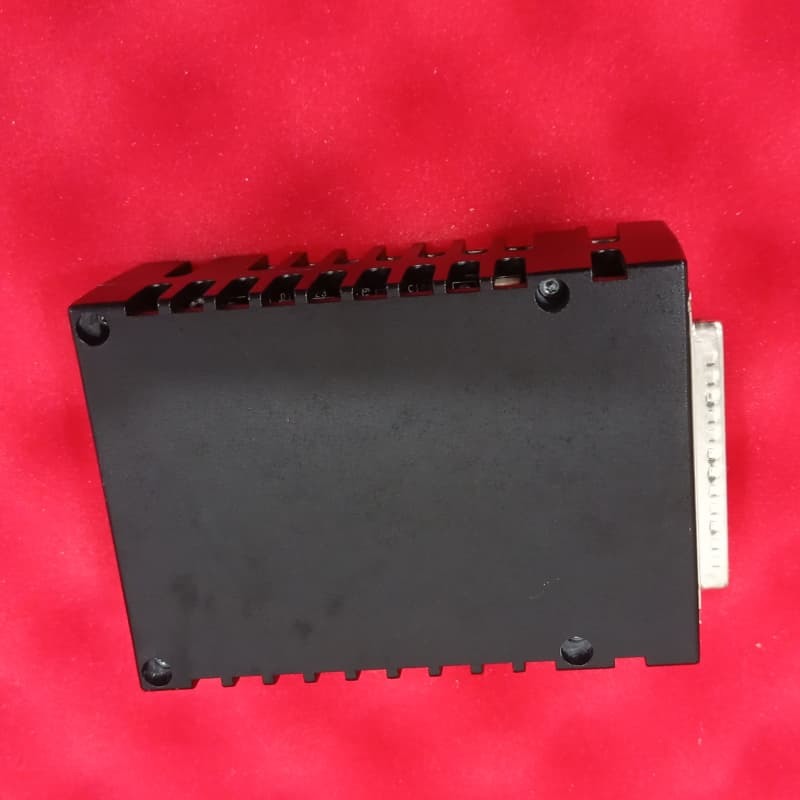

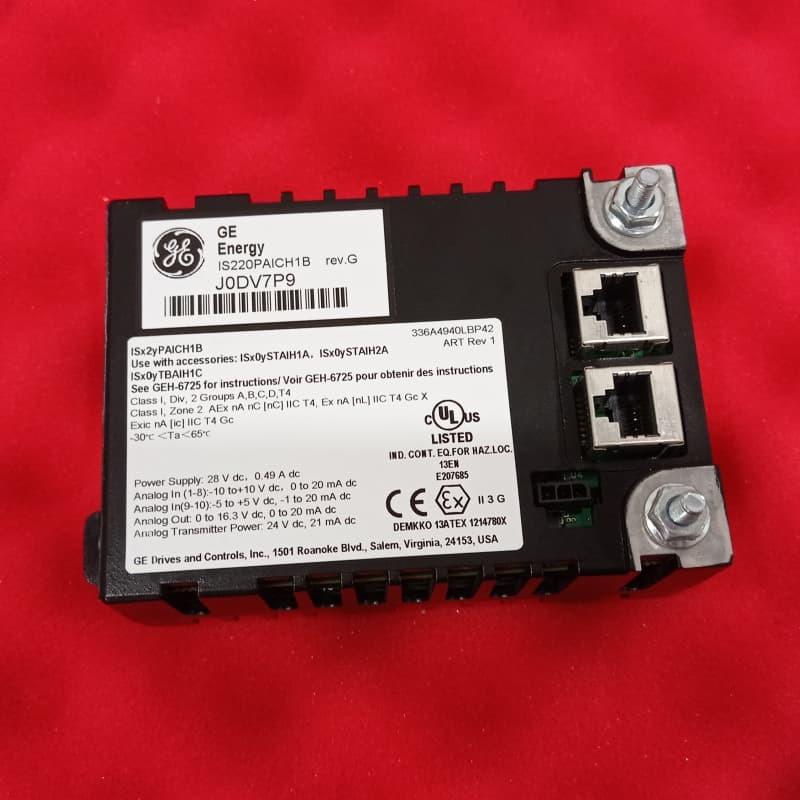

GE IS220PAICH1B Analog I/O Module for Mark VIe Turbine Control

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
Name | GE IS220PAICH1B Analog Input/Output Module | Product ID | IS220PAOCH1B |
---|---|---|---|
Series | Mark VIe | Product Net Weight | 2kg |
Warranty | 1 Year | Product Net Width | 100mm |
Product Net Height | 200mm | Product Net Depth/Length | 330mm |
Vurgulamak | GE Mark VIe turbine analog I/O module,GE IS220PAICH1B control module,turbine control analog input module |
Ürün Açıklaması
GE IS220PAICH1B Analog Input/Output Module
Product Specifications
Attribute | Value |
---|---|
Name | GE IS220PAICH1B Analog Input/Output Module |
Product ID | IS220PAOCH1B |
Series | Mark VIe |
Product Net Weight | 2kg |
Warranty | 1 Year |
Dimensions (W x H x D) | 100mm × 200mm × 330mm |
Product Overview
The GE IS220PAICH1B is an Analog I/O Pack from the Mark VIe series, serving as a critical electrical interface between 1-2 I/O Ethernet networks and analog input terminal boards. It integrates a shared processor board and a dedicated analog input acquisition board, handling 10 analog inputs and 2 analog outputs.
Key Features
- Flexible I/O Configuration: 10 analog inputs (Channels 1-8 configurable as 5V/10V or 0-20mA; Channels 9-10 as 1mA or 0-20mA) and 2 analog outputs with 18V compliance in simplex/TMR modes
- Processor & Auto-Reconfiguration: Features soft-start circuit for sequential power-up and self-test routines with plug-and-play replacement capability
- Advanced Analog Hardware: 16-bit ADC with multiplexing and gain options for inputs; 14-bit DACs, current regulators, and mechanical relays for outputs
- High Performance: 5ms normal scan time, 16-bit conversion resolution, and 5.3W typical power consumption
- TMR Compatibility: Output relays isolate failed channels for uninterrupted operation in TMR systems

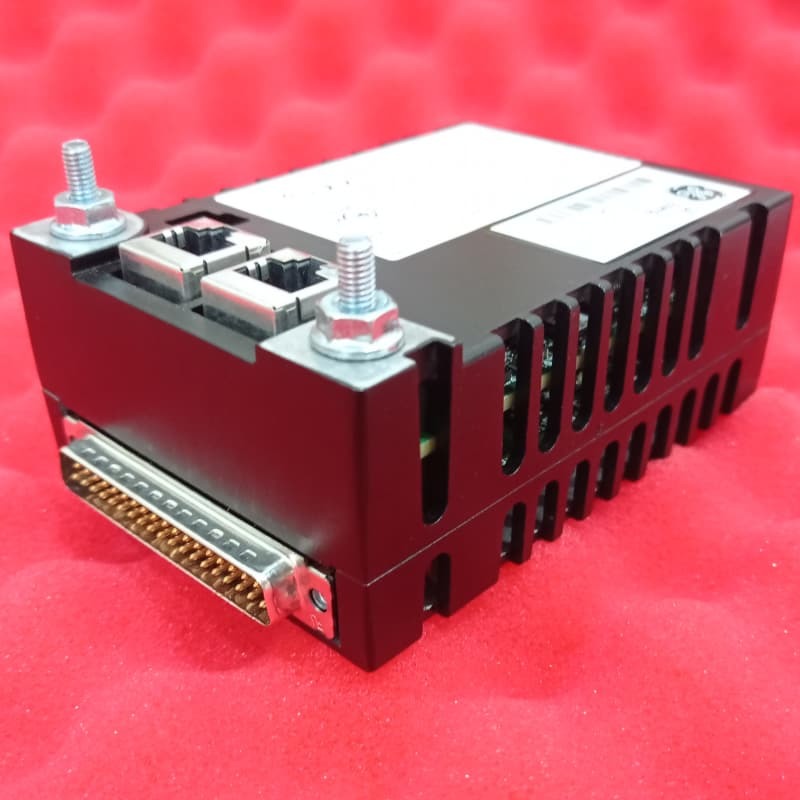

- Connectivity: Power via 3-pin connector, data transmission through dual RJ45 Ethernet ports and DC-37 pin connector
- Diagnostic Capabilities: LED indicators provide visual feedback for operational status
